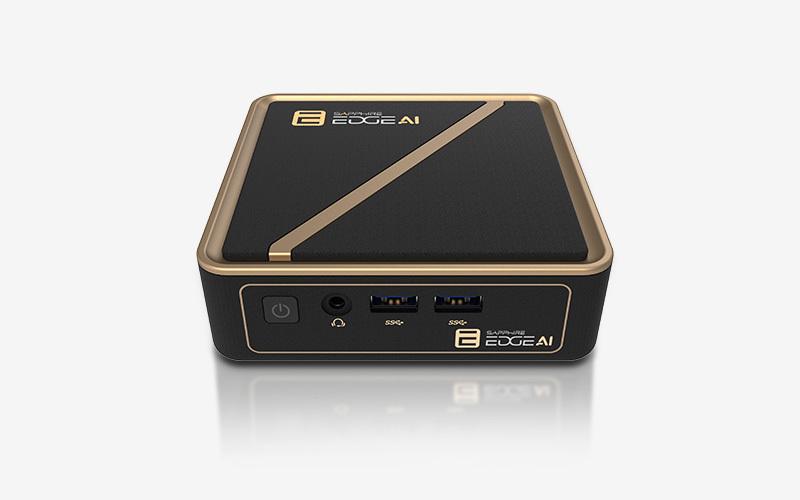

SAPPHFIRE MINI PC EDGE AI 340
Категория: COMPUTER /
Производител: SAPPHIRE
617,39 €
В наличност
Характеристики:
I/O: Front: 2 × USB 3.2 Gen 2 Type-A, 1 × 3.5 mm Audio Jack;
Rear: 2 × USB4 Type-C, 1 × USB 3.2 Gen 2 Type-A, 1 × USB 2.0 Type-A, 2 × HDMI 2.1, 1 × RJ-45, 1 × DC-In
LAN: 2.5 Gigabit Ethernet
SSD: Supports M.2 NVMe SSD
Audio: Realtek ALC256;
3.5 mm Audio Jack;
HDMI / USB-C Digital Audio
Color: Black / Gold
Model: EDGE AI 340
Power: CPU Default TDP: 28 W
Memory: 2 × DDR5 SO-DIMM Slots;
Dual Channel;
Up to 96 GB (2 × 48 GB)
Chipset: AMD Ryzen AI 300 Series Integrated Platform
Display: Supports Up to 4 External Displays
Storage: 1 × M.2 2280 PCIe 4.0 x4;
1 × M.2 2242 PCIe 4.0 x4
Features: AMD Ryzen AI NPU Up to 50 TOPS;
Copilot+ PC Capable;
Quad Display Support;
Wi-Fi 6E;
2.5GbE;
USB4
Graphics: Integrated AMD Radeon 840M Graphics
Security: Kensington Security Lock Slot
Wireless: Wi-Fi 6E (802.11ax)
Bluetooth: Bluetooth 5.2
CPU model: AMD Ryzen AI 5 340, 6 Cores / 12 Threads, Up to 4.8 GHz, 22 MB Total Cache, NPU (Up to) 50 TOPS
Mainboard: Proprietary Mini PC Mainboard;
AMD FP8 Platform
Dimensions: 117 × 111 × 30 mm (W × D × H)
Vendor_url: https://www.sapphiretech.com/en/commercial/edge-ai-mini-pc#Specification
Memory size: No RAM Installed;
Up to 96 GB Supported
Memory type: DDR5-5600 SO-DIMM
Manufacturer: Sapphire
Power supply: External 120 W Power Adapter;
19 V DC / 6.32 A
Expansion slots: 1 × M.2 2280 PCIe 4.0 x4;
1 × M.2 2242 PCIe 4.0 x4;
1 × M.2 2230 Key E (Occupied by Wireless Module)
Built-in devices: AMD Ryzen AI NPU;
Integrated Graphics;
Wi-Fi / Bluetooth Module
Interfaces/Ports: USB4 40 Gbps;
USB 3.2 Gen 2 10 Gbps;
USB 2.0;
HDMI 2.1;
2.5GbE LAN;
3.5 mm Audio
Mechanical design: Compact Mini PC;
Active Cooling;
VESA Mounting Support
Disk specifications: PCIe NVMe SSD Support
Part number / Product code: 4H020-06-40G
