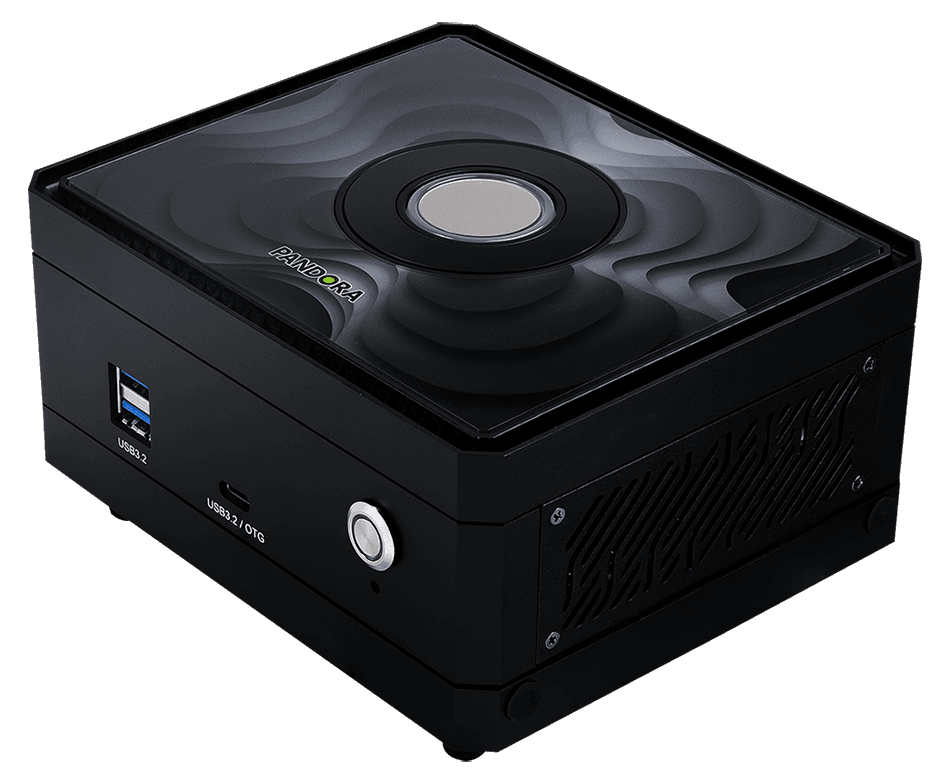

PALIT PANDORA JETSON NX 16GB
Категория: COMPUTER /
Производител: PALIT
1562,84 €
В наличност
Характеристики:
I/O: 1 × HDMI 2.0;
2 × USB 3.2 Gen 2 Type-A;
1 × USB 3.2 Gen 2 Type-C (OTG);
2 × USB 2.0 Type-A;
2 × RJ45;
2 × 3.5 mm Audio Jacks
LAN: 2 × Gigabit Ethernet (10/100/1000 Mbps)
SSD: 128 GB Pre-installed M.2 NVMe SSD
Audio: 1 × 3.5 mm Line In;
1 × 3.5 mm Line Out;
I2S Interface
Model: Pandora NVIDIA Jetson Orin NX 16GB Super Ready
Other: 40-Pin Header;
14-Pin Header;
Nano SIM Slot;
CAN Bus;
Firmware Upgradable;
Operating Temperature: 0–60°C with Airflow;
Storage Temperature: -20–80°C
Camera: External MIPI CSI-2 Camera Support;
8 Lanes;
D-PHY 2.1
Memory: 16 GB LPDDR5; 128-bit, 102.4 GB/s Bandwidth
Weight: 470 g
Chipset: NVIDIA Jetson Orin NX 16GB Super SoM
Display: External Display via HDMI 2.0
Features: AI Performance: 157 TOPS Sparse / 78 TOPS Dense;
NVIDIA Ampere GPU;
Edge AI Computing;
4 × M.2 Expansion Slots
Graphics: NVIDIA Ampere GPU;
1024 CUDA Cores;
32 Tensor Cores
Wireless: Optional Wi-Fi via M.2 Module;
Optional 4G/5G Module
Bluetooth: Optional via Compatible Wireless Module
CPU model: 8-Core Arm Cortex-A78AE v8.2 64-bit;
2 MB L2 + 4 MB L3 Cache
Mainboard: Palit Pandora Carrier Board, 115 × 115 mm
Dimensions: 145 × 123 × 66 mm
Vendor_url: https://www.palit.com/pandora/nxnano.php?tab=overview&lang=en
Memory size: 16 GB
Memory type: LPDDR5
Manufacturer: Palit
Power supply: DC Input: 12–36 V
Expansion slots: 1×M.2 2280 M Key PCIe Gen4×2 Slot ( with Pre-Installed 128GB SSD );
1×M.2 2280/3080 M Key PCIe Gen4×4 Slot, Support SSD or Video Capture Cards;
1×M.2 2230 E Key PCIe Gen4×1+USB2.0 Slot, Support WiFi Module.;
1×M.2 3042/3052 B Key USB3.2 Gen1 Slot, Support 5G/4G Wireless Module.
Built-in devices: NVIDIA Jetson Orin NX 16GB SoM;
128 GB SSD
Interfaces/Ports: HDMI;
USB-A;
USB-C;
Gigabit Ethernet;
Audio In/Out;
MIPI CSI-2;
GPIO;
UART;
I2C;
SPI;
CAN Bus
Mechanical design: Compact Embedded AI Computer
Disk specifications: M.2 2280 PCIe Gen4 ×2 SSD;
Additional M.2 PCIe Gen4 ×4 Storage Support
Part number / Product code: A002FV1P1
