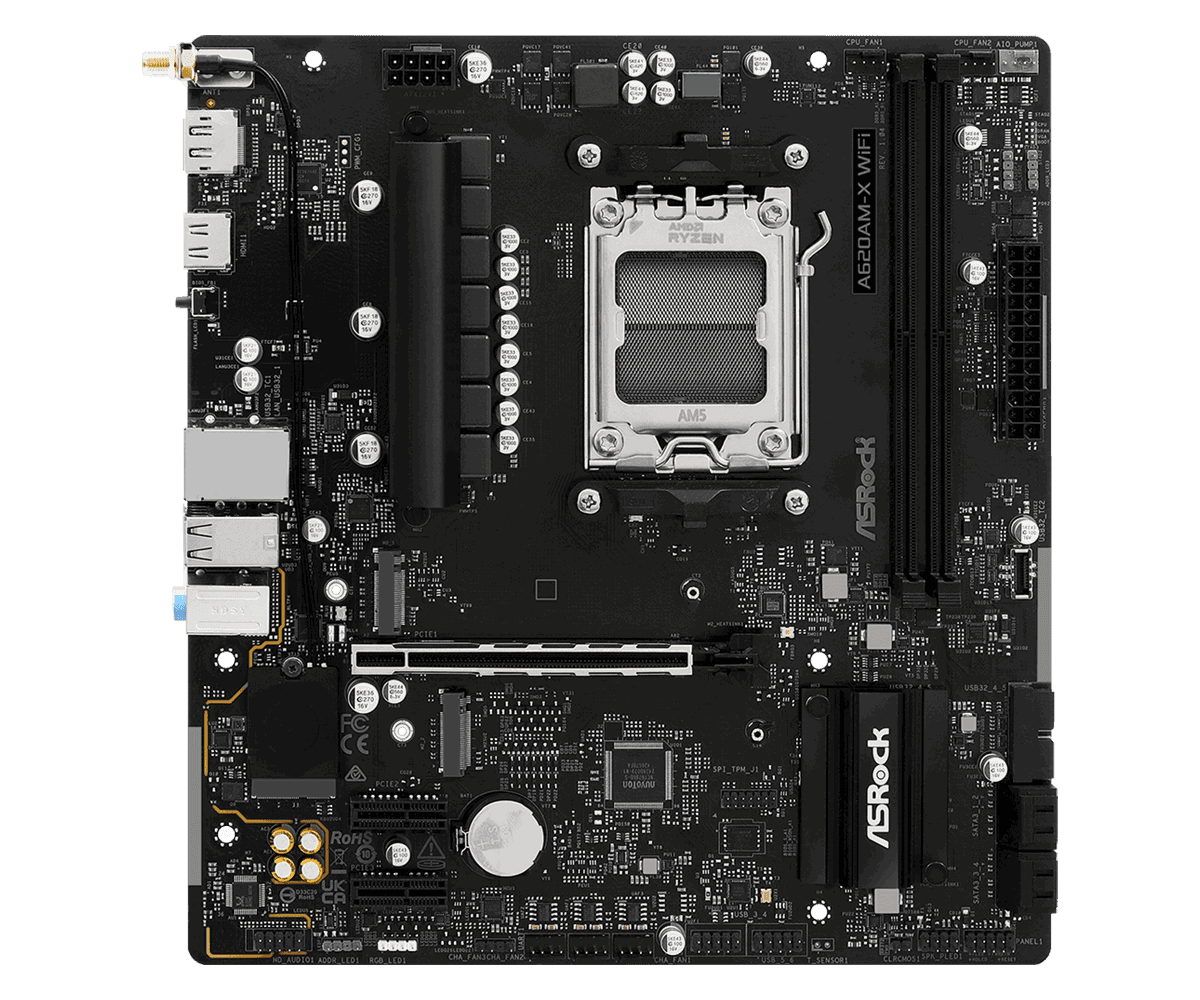

ASROCK A620AM-X WIFI
Категория: MAIN BOARD /
Производител: ASROCK
104,71 €
(204,79 лв.)
В наличност
Характеристики:
OS: Microsoft Windows® 10 64-bit / 11 64-bit
Lan: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
-Smart Auto Adjust Bandwidth Control
-Visual User Friendly UI
-Visual Network Usage Statistics
-Optimized Default Setting for Game, Browser, and Streaming Modes
-User Customized Priority Control
USB: CPU:;
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_3));
Chipset:;
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front);
- 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1 and USB32_2), 2 Front);
- 6 x USB 2.0 (2 Rear, 4 Front)
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Chipset: AMD A620A
Storage: CPU:;
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
Chipset:;
- 4 x SATA3 6.0 Gb/s Connectors
Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connectors: 1 x SPI TPM Header;
1 x Power LED and Speaker Header;
1 x RGB LED Header;
3 x Addressable LED Headers;
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);
1 x 24 pin ATX Power Connector;
1 x 8 pin 12V Power Connector (Hi-Density Power Connector);
1 x Front Panel Audio Connector;
2 x USB 2.0 Headers (Support 4 USB 2.0 ports);
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports);
1 x Front Panel Type C USB 3.2 Gen1 Header
Vendor_url: https://www.asrock.com/mb/AMD/A620AM-X%20WiFi/index.asp#Gallery
Form factor: Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Memory type: Dual Channel DDR5 Memory Technology;
2 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);
Max. capacity of system memory: 128GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Manufacturer: AsRock
Rear panel I/O: 2 x Antenna Ports;
1 x HDMI Port;
1 x DisplayPort 1.4;
1 x USB 3.2 Gen1 Type-C Port;
3 x USB 3.2 Gen1 Type-A Ports;
2 x USB 2.0 Ports;
1 x RJ-45 LAN Port;
1 x BIOS Flashback Button;
HD Audio Jacks: Line in / Front Speaker / Microphone
CPU's supported: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Expansion slots: CPU:;
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;
Chipset:;
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3);
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
