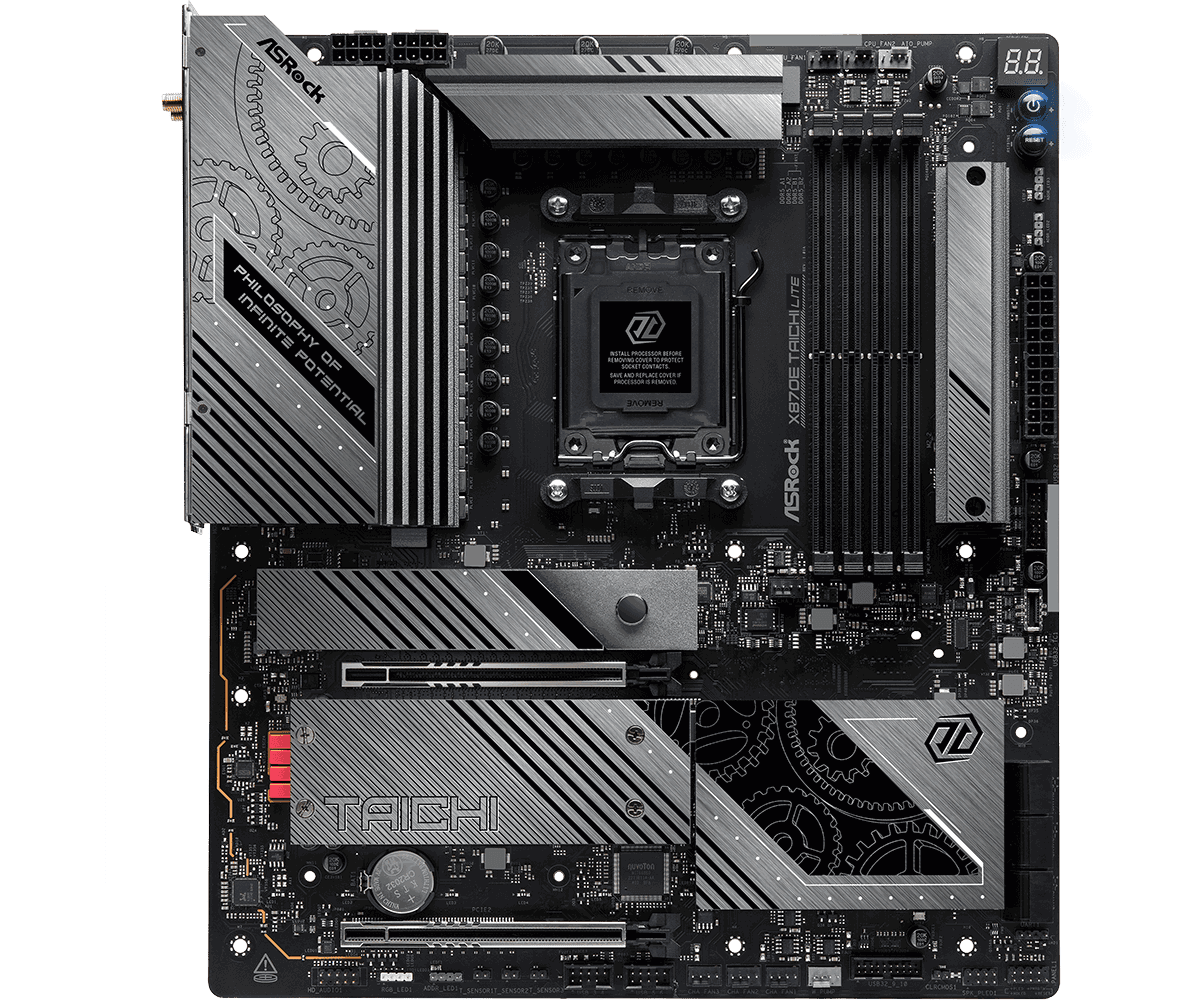

ASROCK X870E TAICHI LITE / AM5
Категория: MAIN BOARD /
Производител: ASROCK
393,47 €
В наличност
Характеристики:
OS: Microsoft Windows® 10 64-bit / 11 64-bit
Lan: 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s;
Realtek RTL8126
USB: CPU:;
- 2 x USB4 Type-C (Rear);
- 2 x USB 3.2 Gen2 Type-A (Rear);
Chipset:;
- 1 x USB 3.2 Gen2x2 Type-C (Front);
- 3 x USB 3.2 Gen2 Type-A (Rear);
- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front);
- 6 x USB 2.0 (2 Rear, 4 Front)
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio: 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);
WIMA Audio Capacitors (For Rear Outputs);
ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR);
Individual PCB Layers for R/L Audio Channel;
Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets);
Nahimic Audio
Model: X870E Taichi Lite
Socket: AM5
Chipset: AMD X870E
Storage: CPU:;
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*;
Chipset:;
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;
- 6 x SATA3 6.0 Gb/s Connectors;
* Supports NVMe SSD as boot disks;
M2_1 is the first priority for M.2 installation.;
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*;
* Only the CPU's embedded graphics can be displayed through USB4 ports.;
If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.
Wireless: 802.11be 2x2 Wi-Fi 7 Module;
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;
Supports 2.4GHz/5GHz/6GHz* frequency band;
Supports 160MHz channel bandwidth with 6GHz* frequency band;
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;
Supports Bluetooth 5.4;
Supports MU-MIMO
Bluetooth: 5.4
Connectors: 3 x Thermistor Cable Headers;
1 x Power LED and Speaker Header;
1 x RGB LED Header*;
3 x Addressable LED Headers**;
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***;
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***;
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***;
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***;
1 x 24 pin ATX Power Connector (Hi-Density Power Connector);
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);
1 x Front Panel Audio Connector (15μ Gold Audio Connector);
2 x USB 2.0 Headers (Support 4 USB 2.0 ports);
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s);
1 x Dr. Debug with LED;
1 x Power Button with LED;
1 x Reset Button with LED
Vendor_url: https://www.asrock.com/mb/AMD/X870E%20Taichi%20Lite/index.asp?utm_source=chatgpt.com#Specification
Form factor: EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm;
8 Layer PCB;
2oz Copper PCB;
Memory type: Dual Channel DDR5 Memory Technology;
4 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*;
Max. capacity of system memory: 256GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*;
*Please refer to Memory Support List on ASRock's website for more information.
Manufacturer: ASRock
Rear panel I/O: 2 x Antenna Ports;
- 1 x HDMI Port;
- 1 x Optical SPDIF Out Port;
- 2 x USB4 Type-C Ports (40 Gb/s)*;
- 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.);
- 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)**;
- 2 x USB 2.0 Ports;
- 1 x RJ-45 LAN Port;
- 1 x Clear CMOS Button;
- 1 x BIOS Flashback Button;
- 1 x Line Out Jack (Gold Audio Jack);
- 1 x Microphone Input Jack (Gold Audio Jack)
CPU's supported: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors;
Supports ASRock Hyper BCLK Engine
Expansion slots: CPU:;
- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*;
Chipset:;
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;
- Supports AMD CrossFire™
