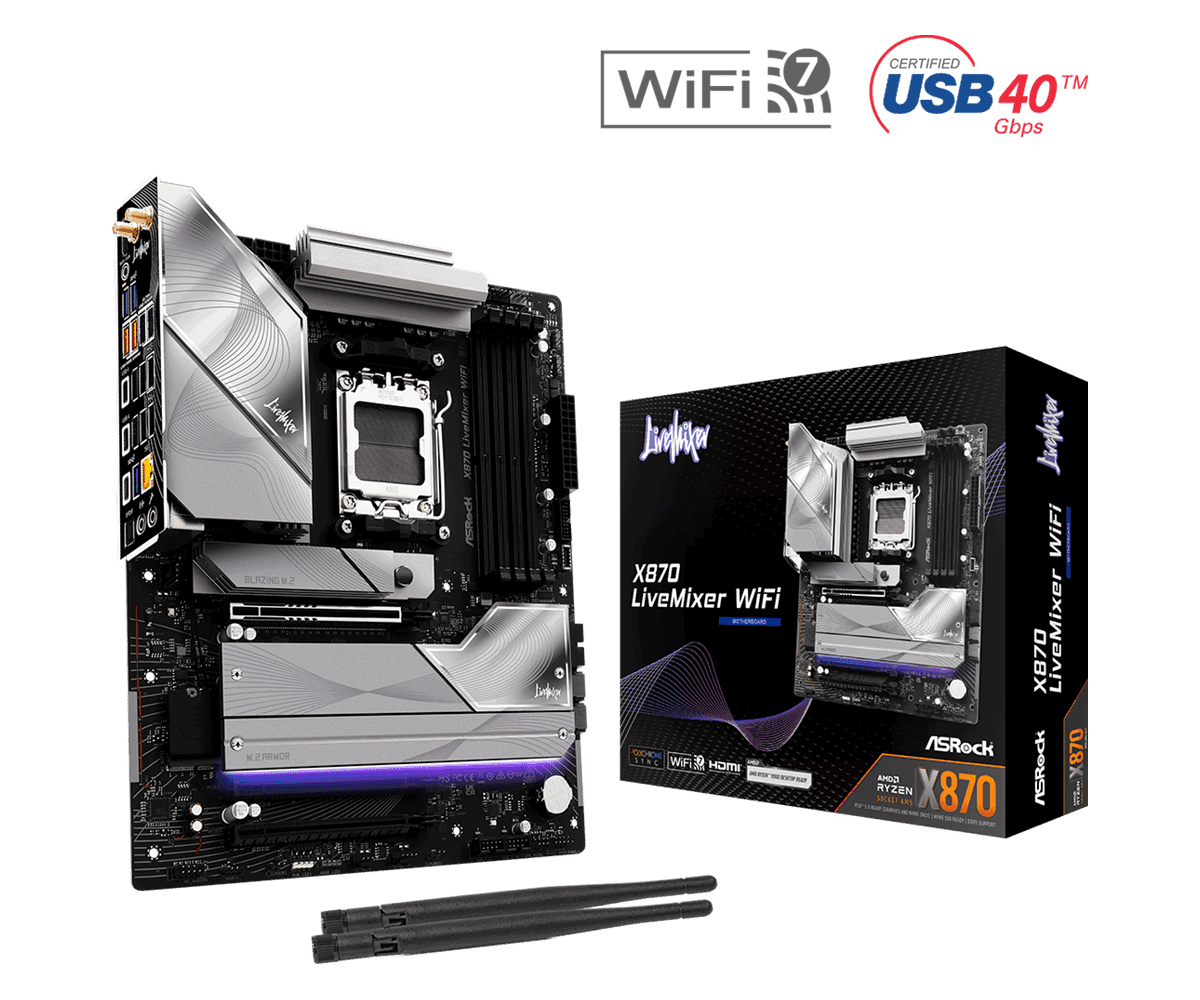

ASROCK X870 LIVEMIXER WIFI
Категория: MAIN BOARD /
Производител: ASROCK
240,71 €
В наличност
Характеристики:
OS: Microsoft Windows® 10 64-bit / 11 64-bit
Lan: 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s;
Realtek RTL8126
USB: CPU:;
- 2 x USB4 Type-C (Rear);
- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_4));
Chipset:;
- 1 x USB 3.2 Gen2x2 Type-C (Front);
- 9 x USB 3.2 Gen1 Type-A (5 Rear (USB32_2, USB32_356, USB32_7), 4 Front));
- 1 x USB 3.2 Gen1 Type-C (Rear);
- 10 x USB 2.0 (6 Rear, 4 Front)
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
RAID: Supports RAID 0 and RAID 1 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);
Individual PCB Layers for R/L Audio Channel;
Nahimic Audio
Model: X870 LIVEMIXER WIFI
Chipset: AMD X870
Storage: CPU:;
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*;
- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*;
Chipset:;
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*;
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*;
- 2 x SATA3 6.0 Gb/s Connectors;
* Supports NVMe SSD as boot disks;
M2_1 is the first priority for M.2 installation.;
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.;
M2_2 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1) series processors. M2_2 will be unavailable with 8000 (Phoenix 2) series processors.;
If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2.;
If M2_3 is occupied, PCIE2 will downgrade to x2 mode.;
If M2_4 is occupied, PCIE3 will downgrade to x2 mode.
Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.* USB4 controller(for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.
Wireless: 802.11be 2x2 Wi-Fi 7 Module;
Supports IEEE 802.11a/b/g/n/ac/ax/be;
Supports 2.4GHz/5GHz/6GHz* frequency band;
Supports 160MHz channel bandwidth with 6GHz* frequency band;
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;
Supports Bluetooth 5.4;
Supports MU-MIMO;
* The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Bluetooth: 5.4
Connectors: 1 x SPI TPM Header;
1 x Thermistor Cable Header;
1 x Power LED and Speaker Header;
1 x RGB LED Header*;
3 x Addressable LED Headers**;
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***;
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***;
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***;
1 x 24 pin ATX Power Connector (Hi-Density Power Connector);
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);
1 x Front Panel Audio Connector;
2 x USB 2.0 Headers (Support 4 USB 2.0 ports);
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s);
* Supports in total up to 12V/3A, 36W LED Strip;
** Support in total up to 5V/3A, 15W LED Strip;
*** CPU_FAN1 supports the fan power up to 1A (12W).;
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).;
CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Vendor_url: https://www.asrock.com/mb/AMD/X870%20LiveMixer%20WiFi/index.asp
Form factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;
8 Layer PCB
Memory type: Dual Channel DDR5 Memory Technology;
4 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*;
Max. capacity of system memory: 256GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*;
*Please refer to Memory Support List on ASRock's website for more information.
Manufacturer: Asrock
Rear panel I/O: 2 x Antenna Ports;
1 x HDMI Port;
1 x Optical SPDIF Out Port;
2 x USB4 Type-C Ports (40 Gb/s)*;
1 x USB 3.2 Gen1 Type-C Port;
7 x USB 3.2 Gen1 Type-A Ports (USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.)**;
6 x USB 2.0 Ports;
1 x RJ-45 LAN Port;
1 x BIOS Flashback Button;
1 x Line Out Jack (Gold Audio Jack);
1 x Microphone Input Jack (Gold Audio Jack);
* Supports USB PD 3.0 up to 5V@3A (15W) charging;
USB4 controller (for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.;
If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2.;
** Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.
CPU's supported: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*;
* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Expansion slots: CPU:;
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*;
Chipset:;
- 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x4 mode*;
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;
- 15μ Gold Contact in VGA PCIe Slot (PCIE1);
* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.;
If M2_3 is occupied, PCIE2 will downgrade to x2 mode.;
If M2_4 is occupied, PCIE3 will downgrade to x2 mode.;
Supports NVMe SSD as boot disks
