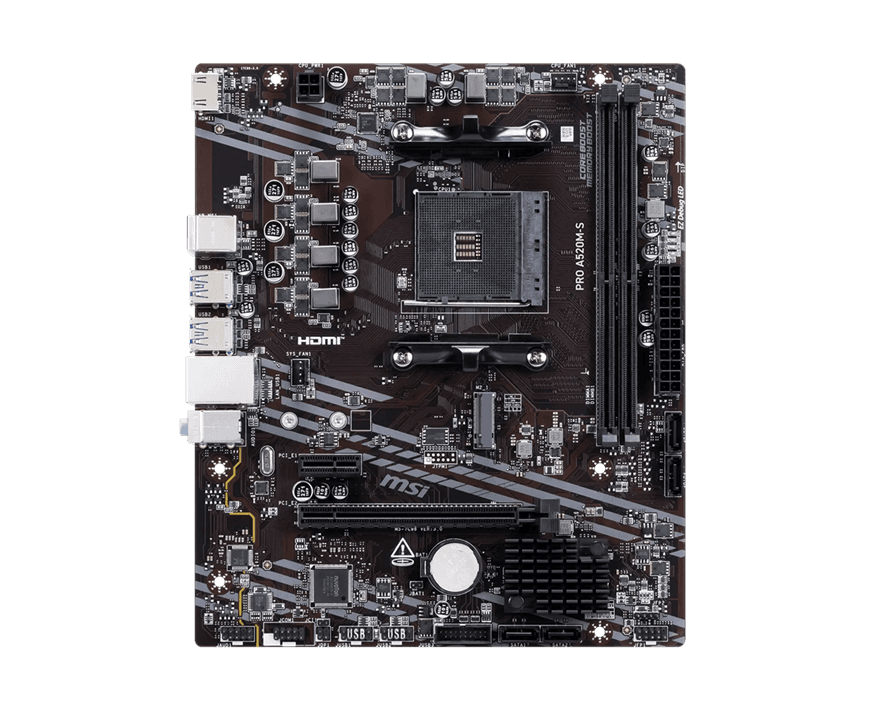

MSI PRO A520M-S
Категория: MAIN BOARD /
Производител: MSI
55,45 €
В наличност
Характеристики:
OS: Support for Windows® 11 64-bit
Lan: Realtek® RTL8111H 1Gbps LAN
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front)
RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Model: PRO A520M-S
Other: 4x EZ Debug LED
Socket: AM4
Chipset: AMD A520
Storage: 1x M.2;
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices;
4x SATA 6G
Graphics: 1x HDMI™;
Support HDMITM 1.4, maximum resolution of 4K 30Hz
Connectors: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
4x USB 2.0 ports;
2x USB 5Gbps Type A ports
Vendor_url: https://www.msi.com/Motherboard/PRO-A520M-S/Overview
Form factor: mATX, 200mmx236mm
Memory type: 2x DDR4, Maximum Memory Capacity 64GB;
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE;
Ryzen™ 5000 Series Processors max. overclocking:;
• 1DPC 1R Max speed up to 4600+ MT/s;
• 1DPC 2R Max speed up to 3866+ MT/s;
Supports JEDEC Speed;
Supports Dual-Channel mode;
Supports non-ECC, un-buffered memory;
Supports Memory Overclocking by A-XMP OC mode
Manufacturer: MSI
Rear panel I/O: HDMI™;
Keyboard / Mouse;
USB 5Gbps Type-A;
LAN Port;
Audio connectors;
USB 2.0
CPU's supported: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Expansion slots: 1x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)
