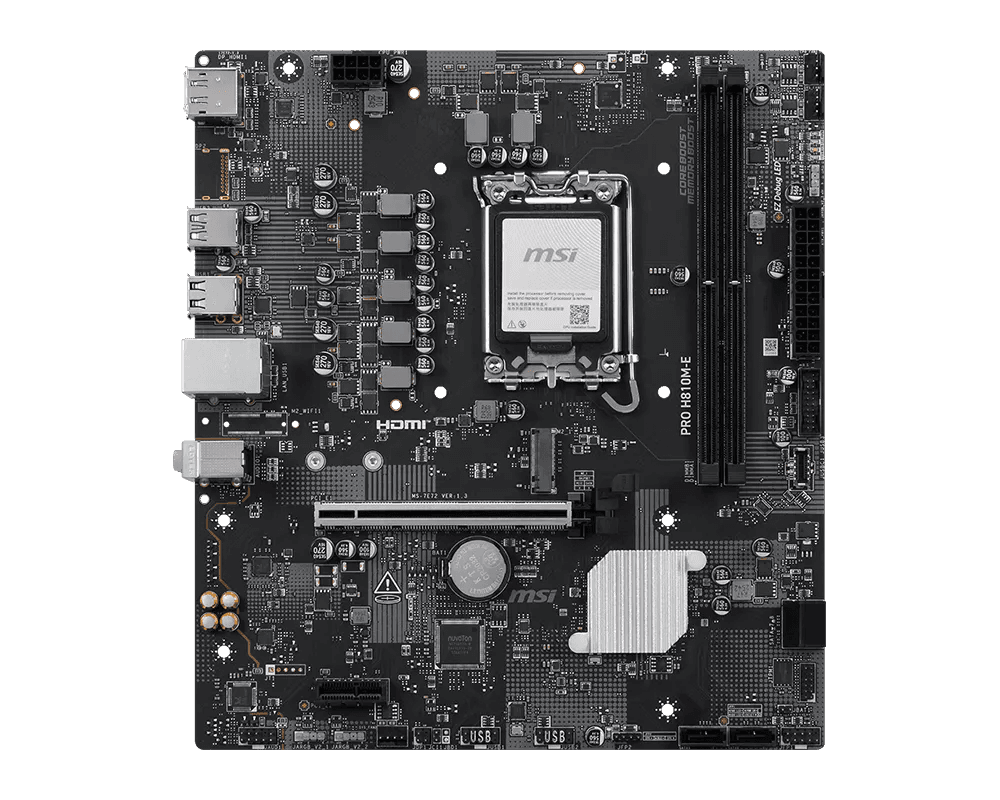

MSI PRO H810M-E
Категория: MAIN BOARD /
Производител: MSI
85,97 €
В наличност
Характеристики:
OS: Support for Windows® 11 64-bit
Lan: Realtek® 8125D 2.5Gbps LAN
USB: 4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)
Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Other: 4x EZ Debug LED;
1x EZ Memory Detection LED
Socket: LGA 1851
Chipset: INTEL H810
Storage: 1x M.2;
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G;
*Please refer to the manual for M.2 SSD heatsink restrictions.
Graphics: 1x HDMI™;
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*;
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed
Connectors: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x TPM pin header(Support TPM 2.0);
4x USB 2.0 ports;
2x USB 5Gbps Type A ports;
1x USB 5Gbps Type C ports
Vendor_url: https://www.msi.com/Motherboard/PRO-H810M-E
Form factor: mATX, 220mmx243.84mm
Memory type: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB;
Memory Support DDR5 7200 - 4800 (JEDEC) MT/s;
Max. overclocking:;
• 1DPC 1R Max speed up to 7200 MT/s;
• 1DPC 2R Max speed up to 6400 MT/s;
Supports Intel® POR Speed and JEDEC Speed;
Supports Dual-Controller Dual-Channel mode;
Supports Non-ECC, Un-buffered memory;
Supports CUDIMM
Manufacturer: MSI
Rear panel I/O: DisplayPort;
USB 5Gbps Type-A;
USB 2.0;
2.5G LAN;
Audio Connectors;
HDMITM;
USB 2.0
CPU's supported: Supports Intel® Core™ Ultra Processors (Series 2)
Expansion slots: 1x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
