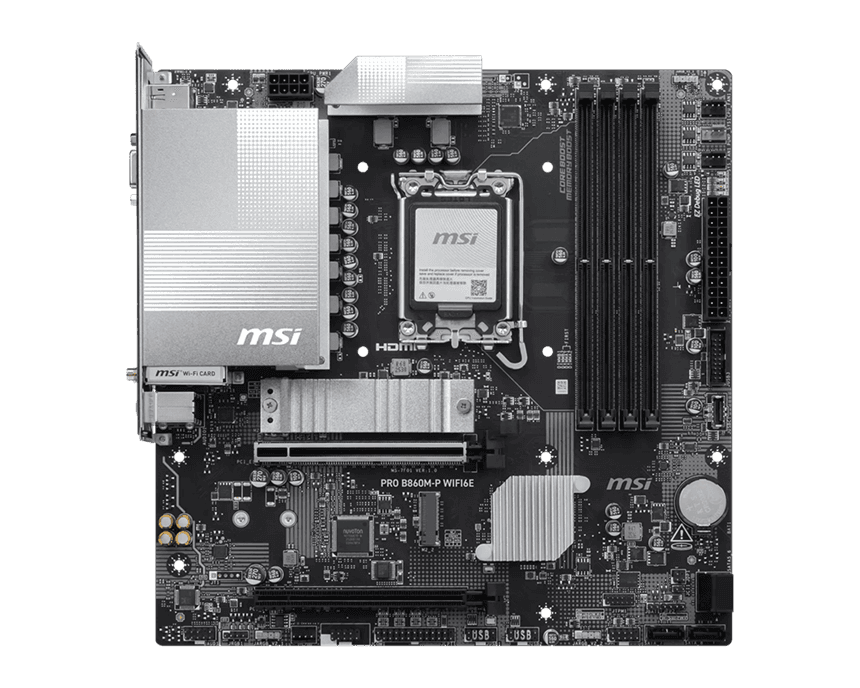

MSI PRO B860M-P WIFI6E
Категория: MAIN BOARD /
Производител: MSI
154,74 €
В наличност
Характеристики:
OS: Support for Windows® 11 64-bit
Lan: Realtek® 8125 2.5Gbps LAN
USB: 2x USB 2.0 (Rear);
4x USB 2.0 (Front);
3x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front)
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio: Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Model: PRO B860M-P WIFI6E
Other: 4x EZ Debug LED;
1x EZ Memory Detection LED
Socket: LGA 1851
Chipset: INTEL B860
Storage: 2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G;
*Please refer to the manual for M.2 SSD heatsink restrictions.
Graphics: 1x HDMI™;
Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz*;
2x DisplayPort;
Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz*;
1x VGA;
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Wireless: Wi-Fi 6E;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth: Supports Bluetooth® 5.3**, FIPS, FISMA
Connectors: 1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Printer Port (JLPT);
1x Com Port (JCOM);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1x TPM pin header(Support TPM 2.0);
4x USB 2.0 ports;
2x USB 5Gbps Type A ports;
1x USB 5Gbps Type C ports
Vendor_url: https://www.msi.com/Motherboard/PRO-B860M-P-WIFI6E
Form factor: mATX, 243.84mmx243.84mm
Memory type: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;
Max. overclocking:;
• 1DPC 1R Max speed up to 8800+ MT/s;
• 1DPC 2R Max speed up to 7200+ MT/s;
• 2DPC 1R Max speed up to 6400+ MT/s;
• 2DPC 2R Max speed up to 5600+ MT/s;
Supports Intel® POR Speed and JEDEC Speed;
Supports Memory Overclocking and Intel® XMP 3.0;
Supports Dual-Controller Dual-Channel mode;
Supports Non-ECC, Un-buffered memory;
Supports CUDIMM
Manufacturer: MSI
Rear panel I/O: DisplayPort;
VGA;
USB 2.0;
USB 5Gbps Type-A;
2.5G LAN;
Wi-Fi / Bluetooth;
Audio Connectors;
HDMI™;
DisplayPort;
Clear CMOS Button;
USB 5Gbps Type-A
CPU's supported: Supports Intel® Core™ Ultra Processors (Series 2)
Expansion slots: 2x PCI-E x16 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
