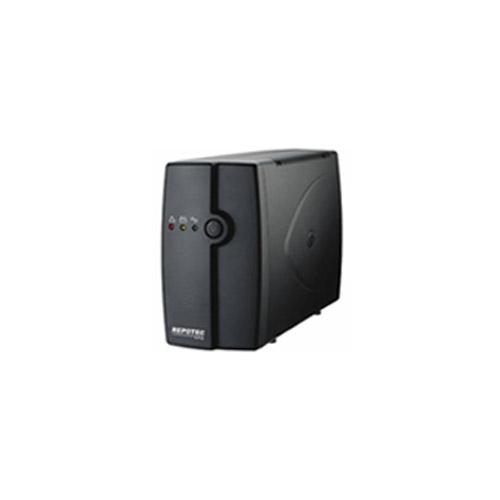

RPT-1003DU 1000VA/AVR/USB

Категория: UPS / Line-Interactive

Производител: REPOTEC

160,64 лв.

В наличност

Описание

Manufacturer: Repotec
Model: RPT-1003DU
Capacity: 1KVA/600W
Type: Line-interactive
Input: Voltage:110/115/120VAC or 220/230/240VAC; Voltage Range:-30%+25%; Frequency:50Hz or 60Hz (Auto Sensing).
Output: Voltage Regulation(Batt. Mode):110/115/120VAC or 220/230/240VAC +/-10%; Frequency:50Hz or 60Hz +/- 1Hz; Waveform:Simulated Sine wave; Transfer Time:< 6ms (Typical); Outlet:IEC-320/Nema 5-15R 6/6/; Universal/German:2/3.
Interface: Communication port:USB or RS232 port
Display: LED status indicator:Normal (Green), Battery (Yellow), UPS cut off (Red)
Alarms: Battery Mode:Beeping twice every 8 second; Low Battery:Beeping five times every second; Overload:Beeping continuously; Fault:Beeping continuously.
Battery: Voltage:24VDC; Recharge Time:5hr to 90% after complete discharge; Safety Protection:Over Charge & Discharge Protection; Advanced Battery Management:Yes; Battery Back-up Time:40 Minutes.
Environment: AVR (Auto. Voltage Regulation):2 Boost + 1 Buck; DC Start Function:Yes; Auto. Restart UPS:Yes; Over/Under voltage protection:Yes; No load Cut-off (Green mode):Yes; Slience the Audible Alarm:Yes; Off Mode Charging:Yes; Short Circuit Protection:AC fuse and Electronics circuit(Line mode) . Electronics circuit(Back-up Mode); Lightning/ Surge Protection:99 Joules(110/115/120VAC) / 175 Joules (220/230/240VAC); Modem/Phone protection (Optional):RJ-11; Operating Temperature:0° C - 40° C (32℉~104℉); Humidity:0-95% (No condensing); Audible Noise:<40 dB at 1M.
Standarts: Safety Standard:CE (EN62040-1-1, EN50091-1); EMC Standard:FCC Part 15 Class B, CE(EN50091-2, EN61000-3-2, EN61000-3-3).
Dimensions: 385x98x170mm
Warranty: 24 months, 12 months battery
